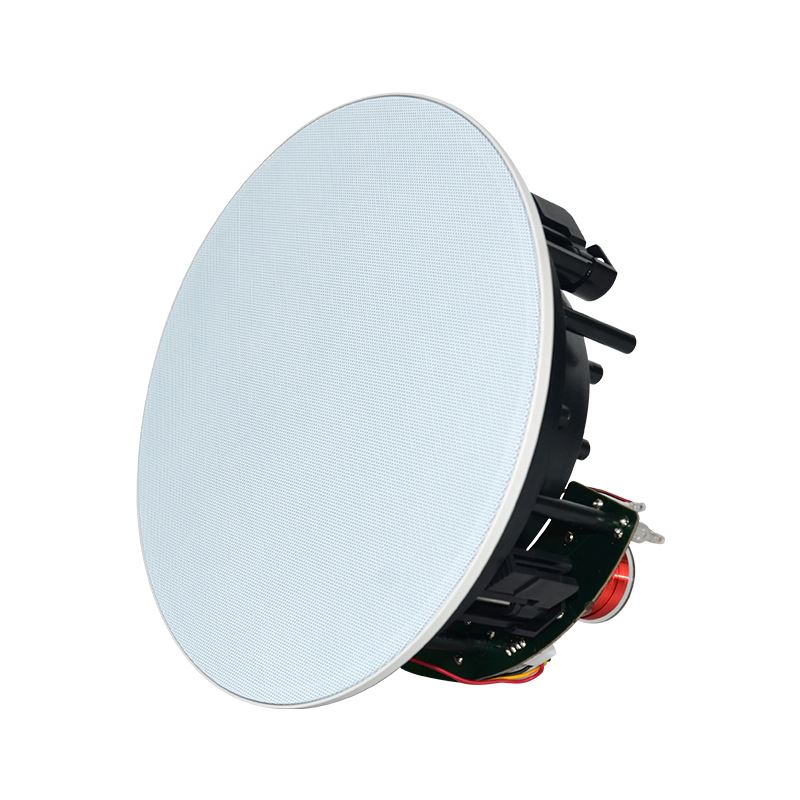

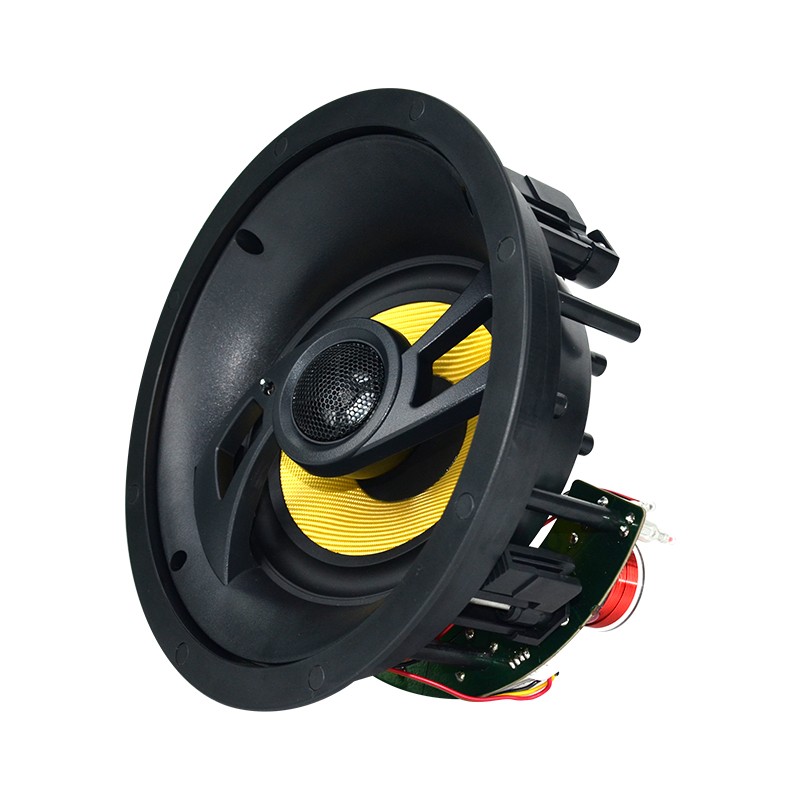

The ceiling-mounted speaker series is specially designed for concealed audio deployment. It adopts an embedded ceiling-mounted installation method and blends into the indoor environment with a minimalist appearance. It is suitable for public broadcasting systems in institutions, offices, hospitals, etc. Its core features include full-frequency units or crossover combinations (such as tweeters + mid-bass units), and are combined with the sound guide cone diffusion technology to achieve uniform sound field coverage. The durability is guaranteed by a metal mesh cover and a high-temperature resistant ABS cavity. It is suitable for places such as hotels, shopping malls, and conference rooms that need to balance sound quality and spatial aesthetics, achieving efficient audio transmission without visual interference.
Specification
|
Model |
IW6543R-B |
| Product Category | Industry type |
| Applicable scope | Institution/Office/Hospital |
| Ip code | IPX5 |
| Rated Impedance | 8Ω |
| /Resonance Frequency | 55Hz |
| Sound Pressure Level | 88dB SPL@1m/W |
| Effective Frequency Range | FO-20kHz |
| Rated Noise Power | 30W |
| Long-term Maximum Power | 45W |
| Distortion | 5% Max |
| Weight | 1.15Kg |
| Mounting dimension | Φ108 |
| Dimension(L*W*H)(mm) | Φ238*D125 |
Product standard
| Surface frame material | ABS |
| Mesh cover material | Iron |
| Rear barrel material | ABS |
| Color | black |
| Unit Weight | 1.59Kg |

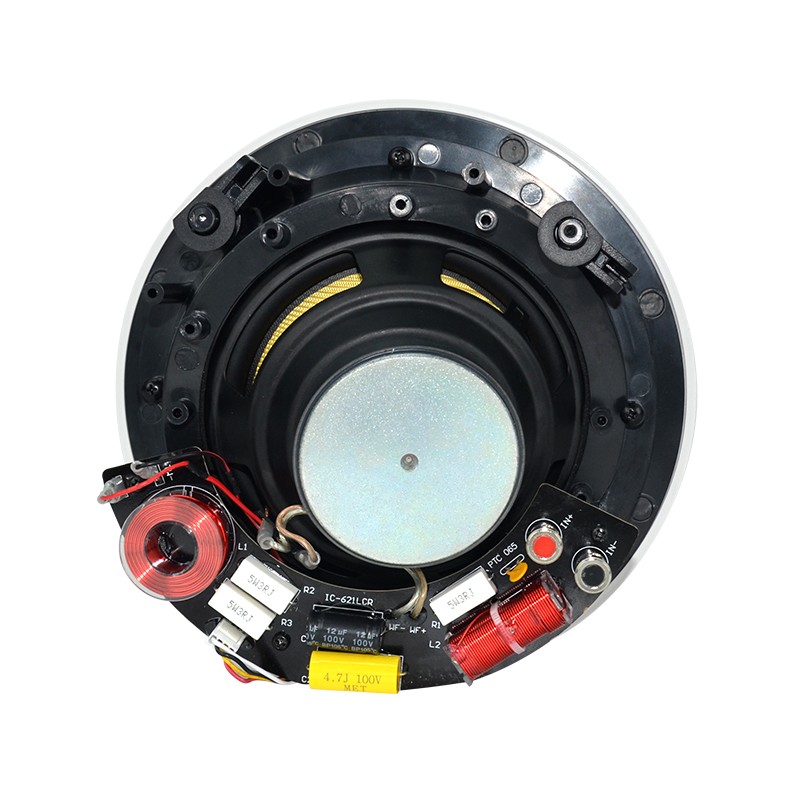

Loudspeaker material specifications
|
Voice coil Specifications |
25.5 |
| DCR impedance | 6.8 |
| Voice coil bobbin | KSV |
| Magnetic steel specification | 80*32*15 Y30 |
| Basin frame material | Iron |
| Cone material | Fiberglass |
| Elastic wave material | CONEX |
| Dust cap material | PP |
Characteristics and Advantages
The ceiling speaker is designed to be embedded and hidden in the ceiling, achieving zero space occupation and visual integration. It is especially suitable for small-sized apartments or minimalist style scenarios. Its core advantage lies in the large-sized sound unit and 360° stereo field technology, which can output rich low frequencies and clear high frequencies. At the same time, by emitting sound downward to reduce sound wave reflection, it ensures uniform sound coverage. Whether it is a home theater, background music or commercial broadcasting, it can provide an immersive auditory experience.
Compared with traditional speakers, ceiling speaker has three major advantages: First, it has high installation safety and is far away from the risk of ground collision; Second, it has strong scene adaptability, covering the demands of multiple fields such as home, restaurant, and meeting room. Thirdly, it has excellent intelligent compatibility and supports wireless connection and smart home systems. When making a purchase, it is recommended to give priority to the sound quality parameters (such as frequency response range), material durability and brand service to balance performance and long-term stability.
FAQ
1.Are ceiling speakers a good idea?
Unlike traditional floor-standing or wall-mounted speakers, in-ceiling speakers provide an innovative way to distribute audio throughout a space without occupying any valuable floor or wall space. This makes them an excellent choice for those who value a clean, clutter-free aesthetic.
2.How do ceiling speakers work?
Do Ceiling Speakers Need Mains Power? No, speakers are usually passive speakers which mean they do not have built-in amplifiers, and instead receive their power via speaker cable that is run from an external amplifier. This is achieved by wiring each ceiling speaker up to the binding posts on the Amp.
3.How much do speakers in the ceiling cost?
The average ceiling speaker price without installation can range from £300 for one room to £5,000 for a whole house. Then, you'll need to budget for an electrician to install them for you.
