No Ceiling for In-Ceiling Speakers? IB6507R-W Hanging Speaker Brings Background Music to Living Rooms & Malls with Ease

Have you seen a living room like this – 5-meter high ceiling, exposed concrete beams, no plasterboard drop ceiling? Industrial, minimalist, and Loft apartments are becoming more popular, but designers and homeowners often run into the same problem: Where do you put the speakers?

In-ceiling speakers require a drop ceiling (plasterboard or mineral fiber) for flush mounting. Without a ceiling, do you have to use floor-standing bookshelf speakers that take up space, or drill holes in the wall for a pair of conspicuous wall-mount speakers? Shopping mall atriums, corridors, factory showrooms, open cafeterias – all face the same issue of "no place to mount speakers".

The answer is simple: hanging speakers (also called pendant speakers or suspended speakers). Today we are reviewing the Acoustic Professor IB6507R-W indoor multi-functional hanging speaker, a product designed specifically for "background music in spaces without a drop ceiling". It solves the problem with a simple hook, and also features multi-tap constant-voltage design, a paper cone coaxial driver, and IPX5 waterproofing. Let's break down why this speaker deserves to be your next purchase.

1. Hanging vs In-Ceiling: When to Choose Hanging?

Before we dive into the IB6507R-W, let's clarify a basic question: In which scenarios is a hanging speaker better than an in-ceiling speaker?

So, if your space has no ceiling at all – for example, exposed concrete, industrial-style commercial areas with visible pipes, or even a regular apartment where you simply don't want a drop ceiling – a hanging speaker is the only reasonable fixed-installation solution.

The IB6507R-W is a professional hanging speaker built precisely for these scenarios.

2. Key Specifications: The Highlight is the Multi-Tap Transformer

Let's start with the official specifications (taken from the Acoustic Professor datasheet):

2.1 Multi-Tap Transformer: Flexible Power Distribution in One System

The most important engineering feature of the IB6507R-W is its multi-tap transformer. It supports two connection modes:

• Low-impedance (8Ω) mode: Directly connect to an 8Ω amplifier output, rated power 15W (max 25W). Suitable for home or low-impedance commercial amplifiers.
• Constant-voltage mode: Via an internal transformer, it supports 100V or 70V lines, with four selectable power taps: 15W / 10W / 5W / 2W.

Why do you need power taps? In a large commercial space, you may need to connect dozens of speakers to a single constant-voltage amplifier. Different areas have different sizes and require different volume levels. By selecting different power taps, you can set 15W for the area near the service desk for higher SPL, 2W or 5W for a corridor at the far end where only background level is needed, while the entire system runs off one amplifier and two main wires – dramatically simplifying wiring and reducing equipment costs.

Example: A 300m² open-plan restaurant with a 4-meter high ceiling and no drop ceiling. Install 12 IB6507R-W hanging speakers:

• 6 in the main dining area: select 15W tap for full, rich sound;
• 4 in the lounge area by the window: select 10W tap for moderate volume;
• 2 in the restroom corridor: select 5W tap for gentle background.
• A single 200W 100V constant-voltage amplifier can easily drive all of them.

2.2 Paper Cone + Coaxial: Sound with Warmth

The cone material of the IB6507R-W is paper, not common PP or ballistic fabric. The sound characteristics of paper cones are very distinctive:

• Warm and natural tone: Paper cones have a unique "papery" quality in the midrange – vocals and string harmonics have a natural smoothness, not as cold as metal cones nor as muddy as some plastics.
• Fast transient response: The stiffness and damping properties of paper fibres allow very quick start and stop, so detail retrieval is excellent. This suits human voice, jazz, folk, light music and other background music genres perfectly.
• Slight "coloration": This coloration is considered a drawback in high-end Hi-Fi, but in a background music system it is actually a benefit – it makes the sound more "intimate" and "human", reducing listening fatigue over long periods.

The drawback of paper is lower moisture resistance compared to PP, but the IB6507R-W comes with an IPX5 waterproof rating – a special surface treatment protects against humid air and occasional splashes, making it safe for malls, cafeterias, and even semi-outdoor areas.

Combined with the coaxial tweeter (the tweeter is integrated at the dust cap position), the IB6507R-W achieves point-source sound radiation. Compared to separate-driver hanging speakers, the coaxial structure ensures that high frequencies and low-mid frequencies emanate from the same point, providing more consistent sound across different seats and more accurate sound imaging.

3. How Flexible is Hanging Installation? – Hook, Cable Length, and Angle

The installation method of the IB6507R-W is extremely simple: there is a Φ8 metal hook at the top. You can:

• Screw an expansion bolt into the concrete slab or beam and hang the speaker directly;
• Use a hanging chain (or steel cable) to extend the drop length, so the speaker hangs exactly 2.5-3 metres above ear level;
• Because the speaker can rotate freely, you can tilt it to point the sound toward a specific area (e.g., directly at the seating zone instead of straight down).

This flexibility is something in-ceiling speakers simply cannot offer. In a Loft living room with a high ceiling, you can use a thin steel cable to lower the IB6507R-W from a 5-metre-high beam down to 2.8 metres, so the sound perfectly covers the sofa area. In a shopping mall atrium with a glass dome (where no flush-mount device is possible), you can fix hanging points to the steel structure, letting the speakers hang vertically like pendant lights – both attractive and practical.

In addition, the driver weight of the IB6507R-W is only 0.8kg, with a total net weight of 1.726kg. The lightweight design means very low pull force on the hanging point – ordinary plastic anchors and self-tapping screws are enough for a secure installation, keeping the barrier to entry very low.

Tip: If you need a longer drop distance, use galvanised steel cable with a diameter of at least 1.5mm and cable grips to ensure safety.

4. Comparison with Other Hanging Speakers on the Market

There are not many true hanging (pendant) speakers on the market. We compare the IB6507R-W with a typical competitor (e.g., a generic 6-inch pendant coaxial constant-voltage speaker in a similar price range):

The core competitiveness of the IB6507R-W lies in: the tonal advantage of the paper cone coaxial driver, 5 power taps (ideal for complex commercial environments), and IPX5 waterproofing for environmental adaptability. For users who need flexible deployment and value natural sound quality, the IB6507R-W is a very precise fit.

5. Three Typical Application Scenarios and Configuration Recommendations

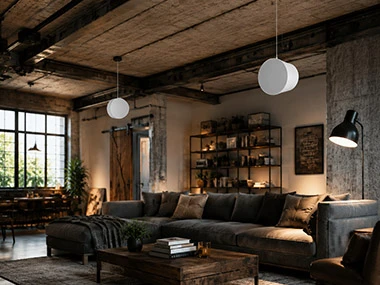

Scenario 1: High-Ceiling Living Room / Loft Apartment (No Drop Ceiling)

• Need: Preserve the industrial style, even sound coverage over the sofa and dining area, and simple aesthetics.
• Setup: Install 2-4 hanging points on beams or the concrete slab. Hang one IB6507R-W from each point, using thin steel cables to lower the speakers to 2.5-3 metres. Use low-impedance mode (8Ω input) with a small Bluetooth stereo amplifier (≥30W per channel @8Ω).
• Result: Point-source distribution, sound coming from slightly above, direction adjustable – good immersive sound without harshness.

Scenario 2: Shopping Mall Atrium / Open Corridor (Constant-Voltage System)

• Need: Long cable runs, many speakers in parallel, adjustable zone volumes, moisture and dust resistance.
• Setup: Use a 100V constant-voltage amplifier (total power depends on number of speakers; e.g., 20 speakers at 10W average → at least 250W amplifier). For each IB6507R-W, select the power tap according to its zone: main traffic aisles use 15W, secondary areas use 10W or 5W. Fix speakers to the top steel structure with Φ8 hooks, hanging height 3-4 metres.
• Result: Long-distance transmission without attenuation, adjustable zone volume ratios, easy maintenance (speakers can be taken down for service at any time).

Scenario 3: Staff Canteen / School Cafeteria (Large, High-Ceiling Open Space)

• Need: Sufficient SPL to cover the whole canteen, high voice intelligibility (announcements or light music), and compliance with fire/safety codes.
• Setup: Calculate the number of speakers based on floor area. A rule of thumb: one IB6507R-W per 25-30m², hanging height 3-3.5 metres, spacing 5-6 metres. With F0 at 140Hz, low-frequency energy is modest but mid-high clarity is excellent – perfect for announcements and background music.
• Result: Every diner can hear announcements clearly; background music does not interfere with conversation; overall sound field is even.

6. Buying Guide: Constant-Voltage vs Low-Impedance – Which Connection Should I Choose?

Many first-time buyers of hanging speakers are confused: Should I use constant-voltage or low-impedance mode?

Note: The transformer taps of the IB6507R-W are built-in. You just select the corresponding input terminal when wiring. Please read the product manual carefully or contact the manufacturer for wiring definitions.

7. Conclusion: The Hanging Speaker – An Underestimated Flexible Solution

After in-ceiling speakers dominated the commercial audio market for years, hanging (pendant) speakers are coming back into the view of designers and integrators – not because in-ceiling is bad, but because more and more high-end residential and commercial spaces are adopting "ceiling-less" design styles. Exposed pipes, concrete ceilings, glass domes, steel structures… these beautiful architectural features leave no place for in-ceiling speakers.

The IB6507R-W provides an answer:

Extremely easy installation: one Φ8 hook, one steel cable – done in minutes.

Flexible power taps: 5 settings, from 2W to 15W, adapt to any zone.

Sound with warmth: paper cone + coaxial – background music is no longer cold and electronic.

Environmentally friendly: IPX5 waterproof, ABS back can, lightweight design – durable and safe.

If your next project – whether it's your own high-ceiling living room, a friend's café, or a mall corridor – happens to have no drop ceiling, then the IB6507R-W should be the first item on your shopping list. For detailed technical drawings or bulk pricing, please contact Acoustic Professor directly.

Where Acoustic Professor Excels: An Industry Background You Can Trust

Acoustic Professor Technology (Huizhou) Co., Ltd. has been a player in the acoustic industry since 2006, evolving into a full-scale speaker manufacturer and acoustic solution provider. The company's certifications and partnerships speak volumes:

• ISO9000 certified since 2008
• IATF16949 automotive quality system implemented in 2017
• Manufacturing partner for Polk Audio, SONY, Honeywell, and TOA
• Harman Automotive Electronics system integration since 2019

This pedigree matters because commercial audio installations demand reliability. When you're installing speakers in a classroom where learning happens every day, or a supermarket that operates 14 hours a day, you can't afford downtime. Acoustic Professor's track record with global audio giants gives you confidence that these speakers will perform year after year.

Frequently Asked Questions

Q1: Will a hanging speaker swing or wobble?
With proper installation and a taut cable, the speaker is very stable. If there is strong airflow (e.g., an air supply vent pointing directly at it), you can use two steel cables in a triangulated configuration for additional stability.

Q2: Can the IB6507R-W be used outdoors?
IPX5 protects against rain splashes, but long-term exposure in completely unsheltered outdoor environments (direct rain) is not recommended. Semi-outdoor areas (with a roof or canopy) are perfectly fine.

Q3: In constant-voltage mode, do different power taps change sound quality?
Essentially no audible difference. The power taps just change the transformer tap position, affecting only SPL – frequency response remains unchanged.

Q4: Is a paper cone really durable in humid environments?
The paper cone of the IB6507R-W is treated with a special waterproof coating. Combined with the IPX5 overall protection, its lifespan in humid environments like malls, cafeterias, or bathrooms is sufficient for commercial requirements (typically 5-8 years). For extremely wet environments (e.g., indoor swimming pools), consider a dedicated full-waterproof model.

Q5: Which sounds better – a hanging speaker or an in-ceiling speaker?
There is no absolute answer. Hanging speakers allow you to freely adjust direction and height, sometimes achieving better direct sound, while in-ceiling speakers are more discreet. With the same driver and enclosure design, hanging speakers often have slightly better mid-high clarity because they can point directly at the listening area.
