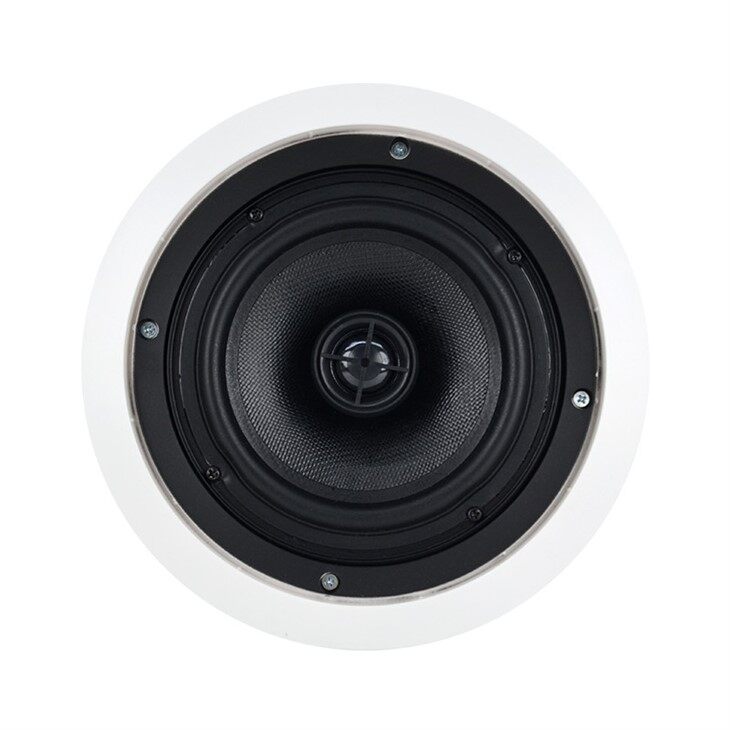

This 6.5-inch white plastic bucket ceiling speaker is a highly efficient audio unit tailor-made for small and medium-sized commercial and light commercial Spaces that pursue ultimate cost-effectiveness, quick deployment and visual integration, such as convenience stores, small offices, hotel rooms, apartment corridors, classrooms and clinics. Its core adopts a lightweight and high-strength white engineering plastic barrel body, significantly reducing weight and having good environmental adaptability. Paired with a pure white mask and a narrow edge design, it almost "disappears" from the common white ceiling after installation, achieving an almost invisible aesthetic effect. The integrated 6.5-inch unit has been optimized to ensure clear voice and stable and reliable background music playback. It is an ideal choice for large-scale deployment in budget-sensitive projects, achieving basic audio coverage requirements with the lowest investment.
Specification
|
Model |
IB6506R-W |
| Product Category | Industry type |
| Applicable scope | Living room/Bar/Cafe |
| Ip code | IPX5 |
| Rated Impedance | 8Ω |
| /Resonance Frequency | 140Hz |
| Sound Pressure Level | 90dB SPL@1m/W |
| Effective Frequency Range | FO-20kHz |
| Rated Noise Power | 30W |
| Long-term Maximum Power | 45W |
| Distortion | 5% Max |
| Weight | 1.25Kg |
| Mounting dimension | Φ208 |
| Dimension(L*W*H)(mm) | Φ240*D146 |
Product standard
| Surface frame material | ABS |
| Mesh cover material | Iron |
| Rear barrel material | ABS |
| Color | White |
| Unit Weight | 1.9Kg |
Loudspeaker material specifications
|
Voice coil Specifications |
25.5 |
| DCR impedance | 6.8 |
| Voice coil bobbin | KSV |
| Magnetic steel specification | 80*32*15 Y30 |
| Basin frame material | Iron |
| Cone material | ballistic |
| Elastic wave material | CONEX |
| Dust cap material | Coaxial tweeter |

Characteristics and Advantages
Significant lightweight: The white engineering plastic bucket body is much lighter than the metal box body (usually reducing weight by more than 40%), greatly reducing the difficulty of handling and installation. It can be operated efficiently by a single person and is particularly suitable for high-altitude work or large-scale batch installation.
Outstanding economic efficiency: The plastic material effectively controls manufacturing costs, providing highly competitive unit prices for the project, especially with significant savings when purchasing in large quantities.
Basic moisture-proof and weather-resistant: The plastic bucket body has excellent moisture-proof and anti-rust properties, making it suitable for ordinary indoor dry and medium to low humidity environments (such as air-conditioned offices and hotel rooms).
FAQ
1.Are ceiling mounted speakers good?
In-ceiling speakers are typically better at creating an immersive, surround-sound experience, while in-wall speakers may be better suited for delivering crisp, clear sound for music or dialogue. This is because in-wall speakers are mounted at ear level, which can provide a more direct and focused sound.
2.What are ceiling speakers called?
Ceiling speakers are the perfect solution for installed sound systems that want to get optimal audio without giving up space to bulky speakers. Also known as "in-ceiling speakers," "ceiling-mount speakers," or "architectural speakers".
3.Do ceiling speakers need a subwoofer?
While a subwoofer is not essential for ceiling speakers, it can enhance your setup by adding extra bass.
