Model Name:W288AR
The W288AR is a premium 2.5-inch tweeter driver engineered for exceptional high-frequency reproduction (400Hz-12kHz) in multimedia audio systems. Featuring an 86dB sensitivity rating and precision Mylar diaphragm, this compact ferrite-magnet driver delivers crystal-clear treble for home theater, automotive, and professional audio applications. Its optimized 45Ω impedance and wide dispersion characteristics ensure seamless integration with various speaker designs while maintaining low distortion (≤8%) at up to 5W power handling.
The speaker has a diameter of 2.5 inches (about 59.94 mm), which is a relatively small size, making it suitable for use in compact Spaces. Special diaphragm materials and precise magnetic circuit design are used to ensure accurate reproduction of high-frequency sound.
Specification
|
Model |
W288AR |
|
Rated Impedance |
45Ω |
|
Resonance Frequency |
400 Hz |
|
Sound Pressure Level |
86 ± 2 dB SPL @1m1W |
|
Effective Frequency Range |
F0: ～ 12K |
|
Rated Noise Power |
3W |
|
Long-term Maximum Power |
5W |
|
Line input |
3 |
|
Distortion |
8 % Max |
|
Weight |
38g |
|

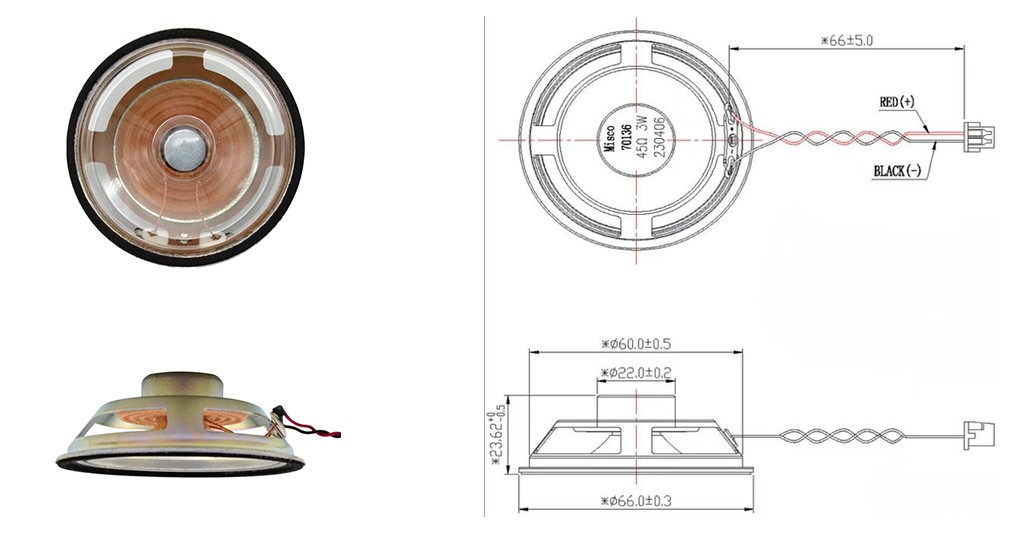

Dimension(L*W*H)(mm) |
Φ60.0 |
Loudspeaker material specifications
|
Voice coil Specifications |
Φ13.28 |
|
DCR impedance |
40 |
|
Voice coil bobbin |
KSV |
|
Magnetic steel specification |
12.5X4.5 N35 12.5X2 N35 |
|
Basin frame material |
Iron |
|
Cone material |
Mylar |
|
Elastic wave material |
Cotton cloth |
|
Dust cap material |
Mylar |
The T/S parameter
| Re | Fo | BL | Qms | Qes | Qts | Vas | Mms |
| 38.92 | 3.56 | 4.973 | 4.721 | 3 | 1.837 | 2.01 | 8.51 |
Performance characteristics
High frequency response: The main feature of this speaker is its excellent high frequency response, which is able to clearly reproduce the details of vocals and instruments, such as the high notes of cymbals, violins and pianos.
Timbre: Tweeters usually have a bright, clear timbre that helps enhance the transparency and layering of the overall sound.
Directivity: Because of their smaller size and specific design, tweeters usually have a strong directivity, which means that the sound is more focused in a particular direction.
FAQ
1.What is a multimedia speaker?
Computer speakers, or multimedia speakers, are speakers sold for use with computers, although usually capable of other audio uses, e.g. for an MP3 player.
2.What are the three types of speakers?
Woofers: Woofers are responsible for producing the low frequency of sounds. ...
Tweeters: Tweeters produce high-frequency audio. ...
Mid-Range: This type of speakers produces the frequency that is in between the woofer and tweeters.
3.What is a multimedia speaker system?
Connectivity Options: Multimedia speakers typically offer a variety of connectivity options to accommodate different devices. They may have analog inputs (such as 3.5mm audio jack or RCA connectors) and digital inputs (such as USB or optical) to connect to various audio sources.
