Description
Technical Parameters
| Specification | |||||||
| Model | IW103D26G01 | ||||||
| Product Category | Industrial category | ||||||
| Applicable scope | Car speaker | ||||||
| Ip code | IPX5 | ||||||
| Rated Impedance | 4Ω | ||||||
| Resonance Frequency | 60HZ | ||||||
| Sound Pressure Level | 85± 2dB SPL@1m/W | ||||||
| Effective Frequency Range | 80Hz～ 10KHZ | ||||||
| Rated Noise Power | 30W | ||||||
| Long-term Maximum Power | 45W | ||||||
| Power Taps | / | ||||||
| Line input | / | ||||||
| Distortion | 5% Max | ||||||
| Weight | 0.54KG | ||||||
| Mounting dimension | φ116.63 | ||||||
| Dimension(L*W*H)(mm) | φ103 | ||||||
| Product standard | |||||||
| Surface frame material | / | ||||||
| Mesh cover material | / | ||||||
| Rear barrel material | Iron | ||||||
| Color | black | ||||||
| Unit Weight | |||||||
| Gross Weight | / | ||||||
| Packing Dimension(cm) | / | ||||||
| Loudspeaker material specifications | |||||||
| Voice coil Specifications | 25.5 | ||||||
| DCR impedance | 3.5Ω | ||||||
| Voice coil bobbin | / | ||||||
| Magnetic steel specification | φ70*φ32*15H | ||||||
| Basin frame material | Iron | ||||||
| Cone material | |||||||
| Elastic wave material | CONEX | ||||||
| Dust cap material | / | ||||||

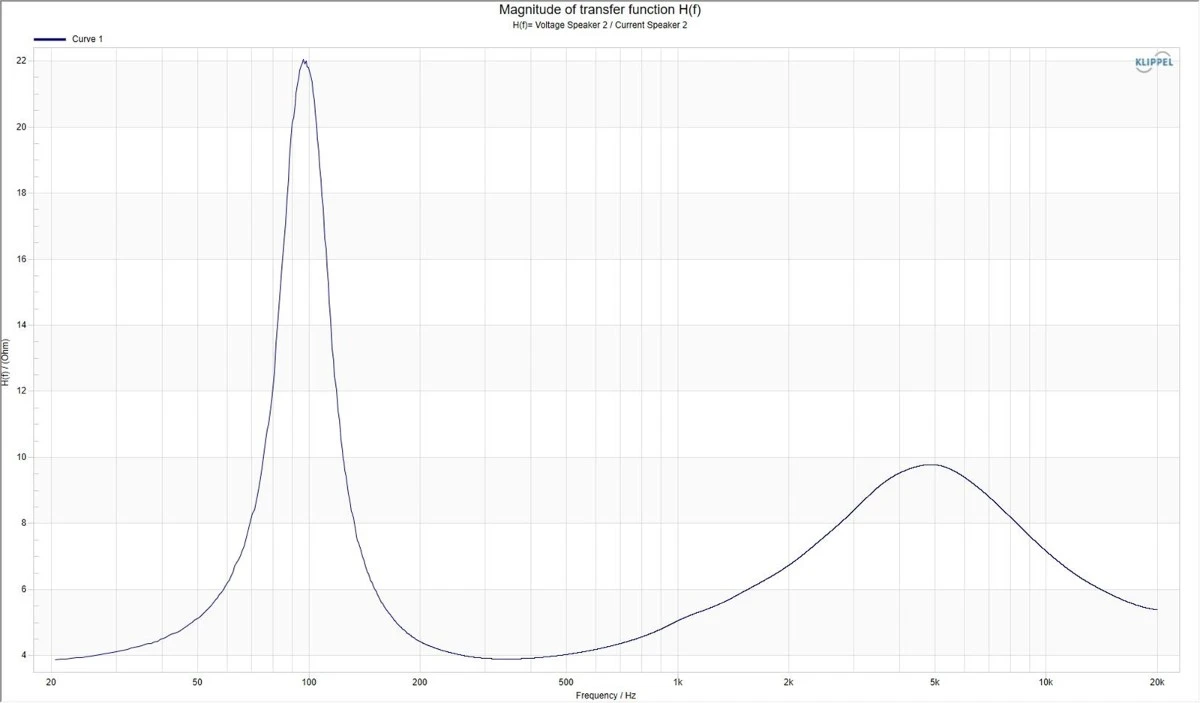

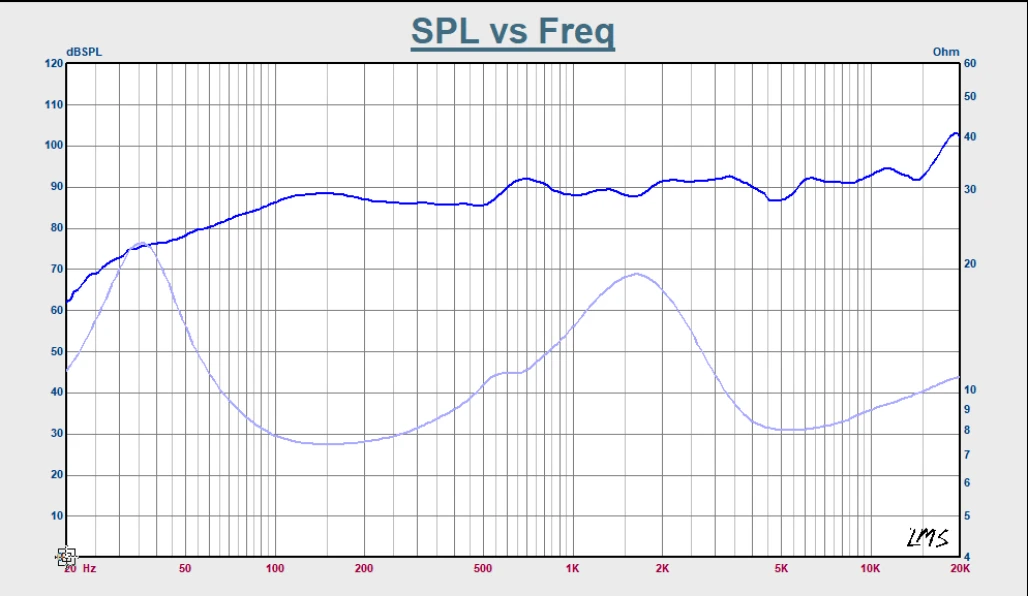

SPL/IMP
Appearance/Dimension Drawing
